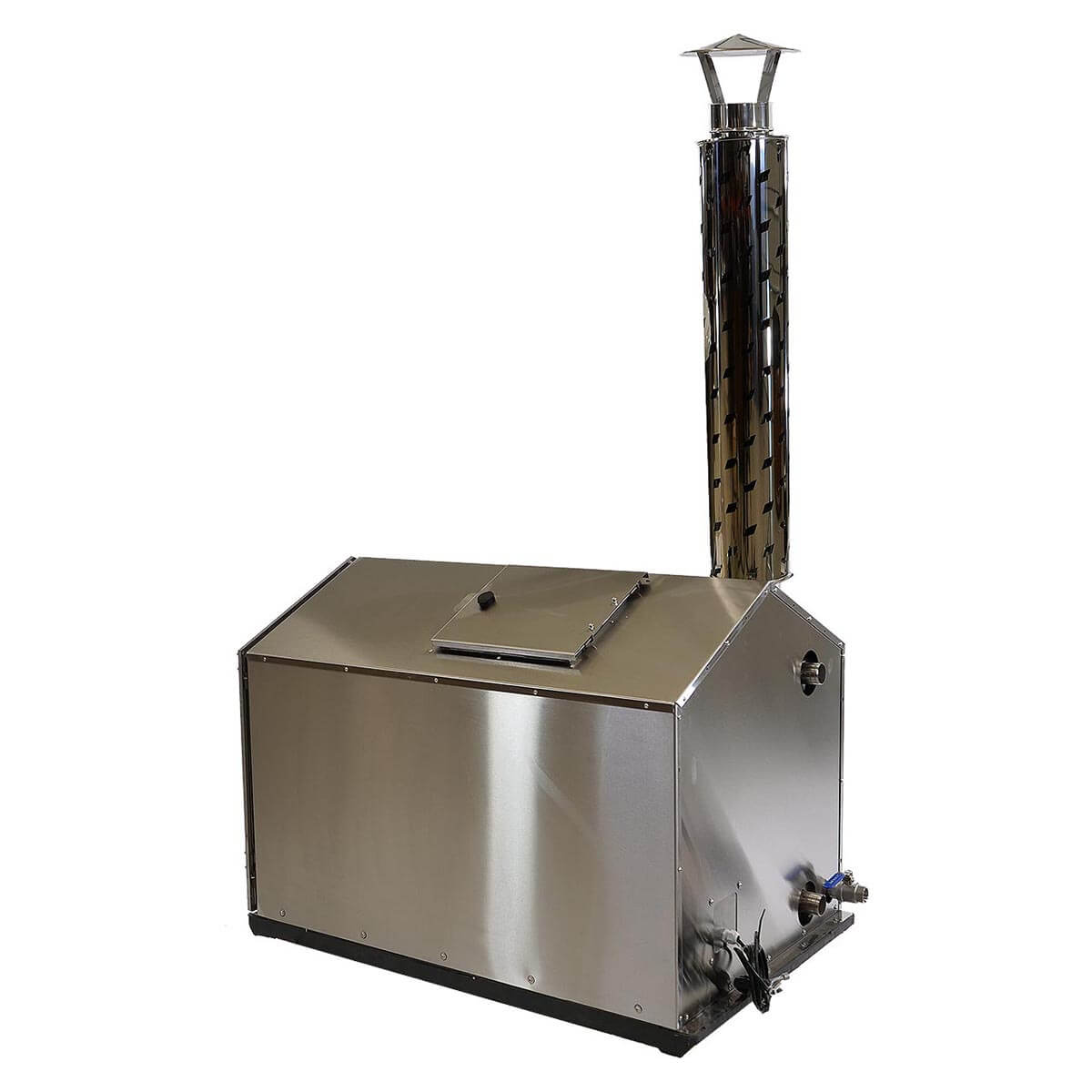

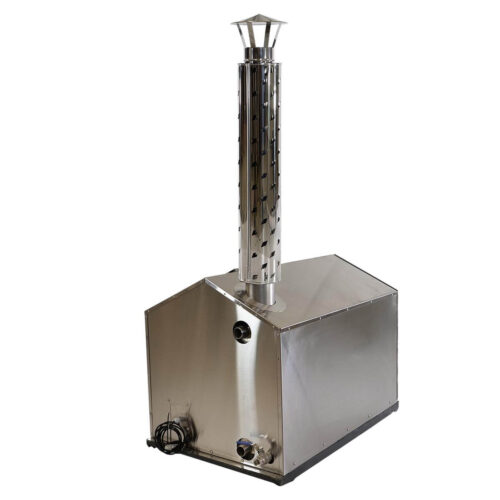

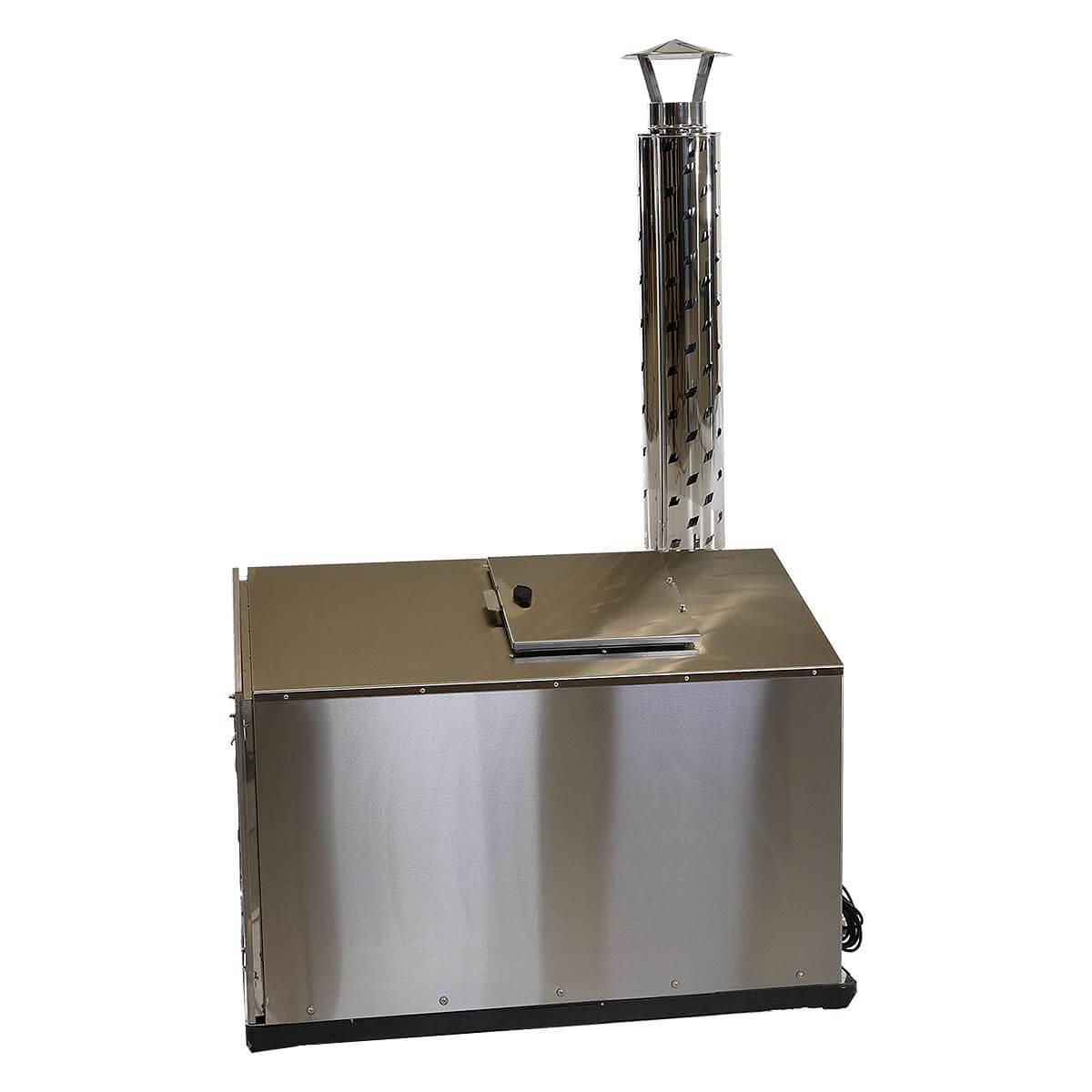

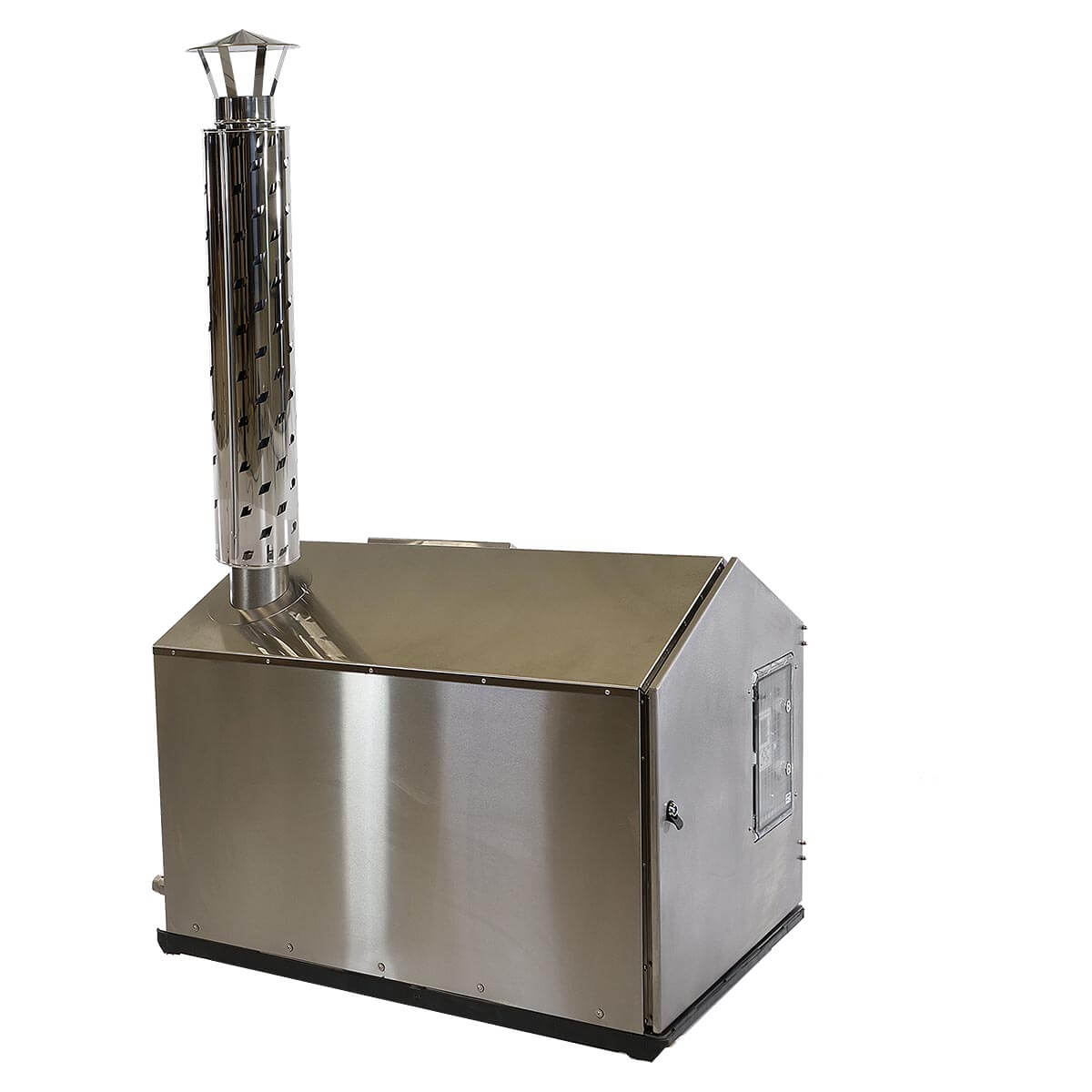

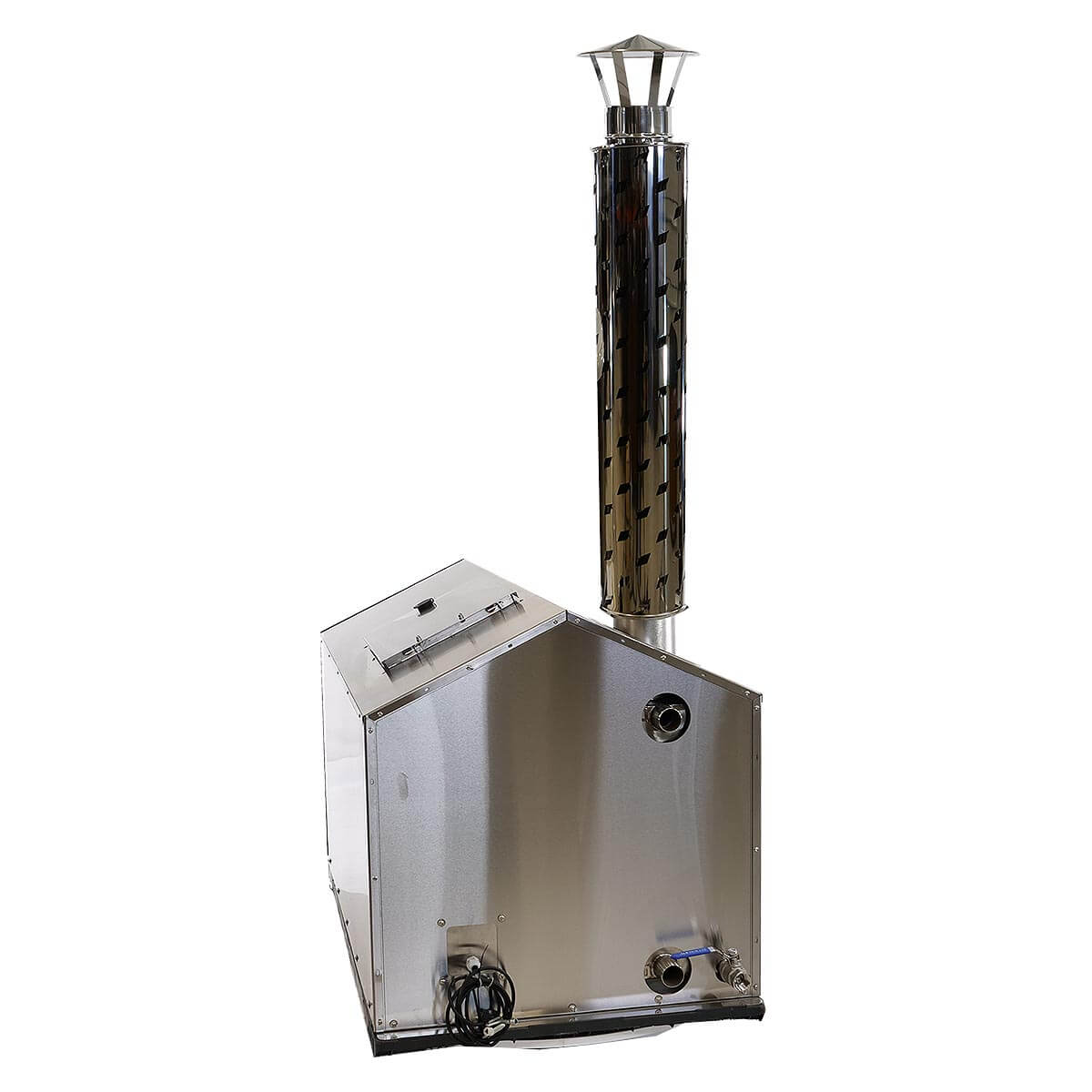

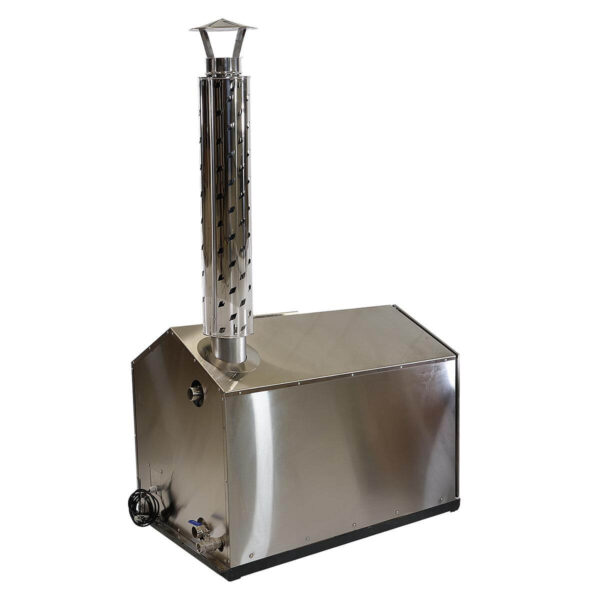

E-Smart/wood pellet heater 25kW
2970 € RRP excl VAT
Introducing the SMART Wood – Pellet Heater! With 25 kW SMART Wood – Pellet Heater it is possible to have complete control of the heater via mobile device, heat hot tubs water faster than with traditional wood heating stoves and have the same water temperature in the hot tub all the time.
E-Smart/wood pellet heater 25kW
2970 € RRP excl VAT
Introducing the SMART Wood – Pellet Heater! With 25 kW SMART Wood – Pellet Heater it is possible to have complete control of the heater via mobile device, heat hot tubs water faster than with traditional wood heating stoves and have the same water temperature in the hot tub all the time.
CUSTOMIZE YOUR PRODUCT
/Heaters/E-Smart wood pellet heater
https://tenspa.eu/presentations/thumbnail-360.jpg
Height | 90 cm |
Lenght | 120 cm |
Width | 80 cm |
Chimney height | 2 m |
Power | 25 kW |
Weight | 190 kg |
Wood pellet capacity | 50 kg |
Fuel requirements | 6 mm wood pellets - A1 or Din plius standarts |
Package dimensions: L120 cm × W80 cm x H85cm (Euro palette). Weight 120kg
Available locations:
- Europe: We deliver to all European countries. Please note that for countries outside the EU—such as the UK, Switzerland, Turkey, Liechtenstein, Georgia, Montenegro, and Norway— you will not be charged VAT by us. However, import costs may apply and must be settled directly with your local customs authorities before shipment.
- Worldwide: Yes, we ship worldwide! If you don’t see your country listed, please reach out to our sales team for further assistance at sales@tenspa.eu
Delivery time:
Europe: 1-2 weeks
Worldwide: please reach out to our sales team for further assistance at sales@tenspa.eu
VERY IMPORTANT: upon delivery of the products, they must be inspected immediately. If product defects are visible, they must be indicated in the CMR cargo consignment note or courier delivery document. It is necessary to report this immediately to email sales@tenspa.eu
If clearly visible damage to the product is not indicated immediately, it is considered that the product was delivered correctly and no claims can be made for such product damage in the future.
NOTE: limited warranty from delivery date IMPORTANT: please be aware that stainless steel may be susceptible to rust. But please note these rusts you could clean very easy. Observed rust should be removed immediately Support access: Our dedicated help desk is always available to assist you with any questions or issues. Please note: Due to supply, and ongoing product development, the warranty product supplied may be slightly different to the original advertised.
Warranty on stainless steel units: leakages | 2 years |
Control system | 2 years |
Heating element | 1 year |
FOR COMMERCIAL USE | 1 year |
The information is being prepared.
Summary

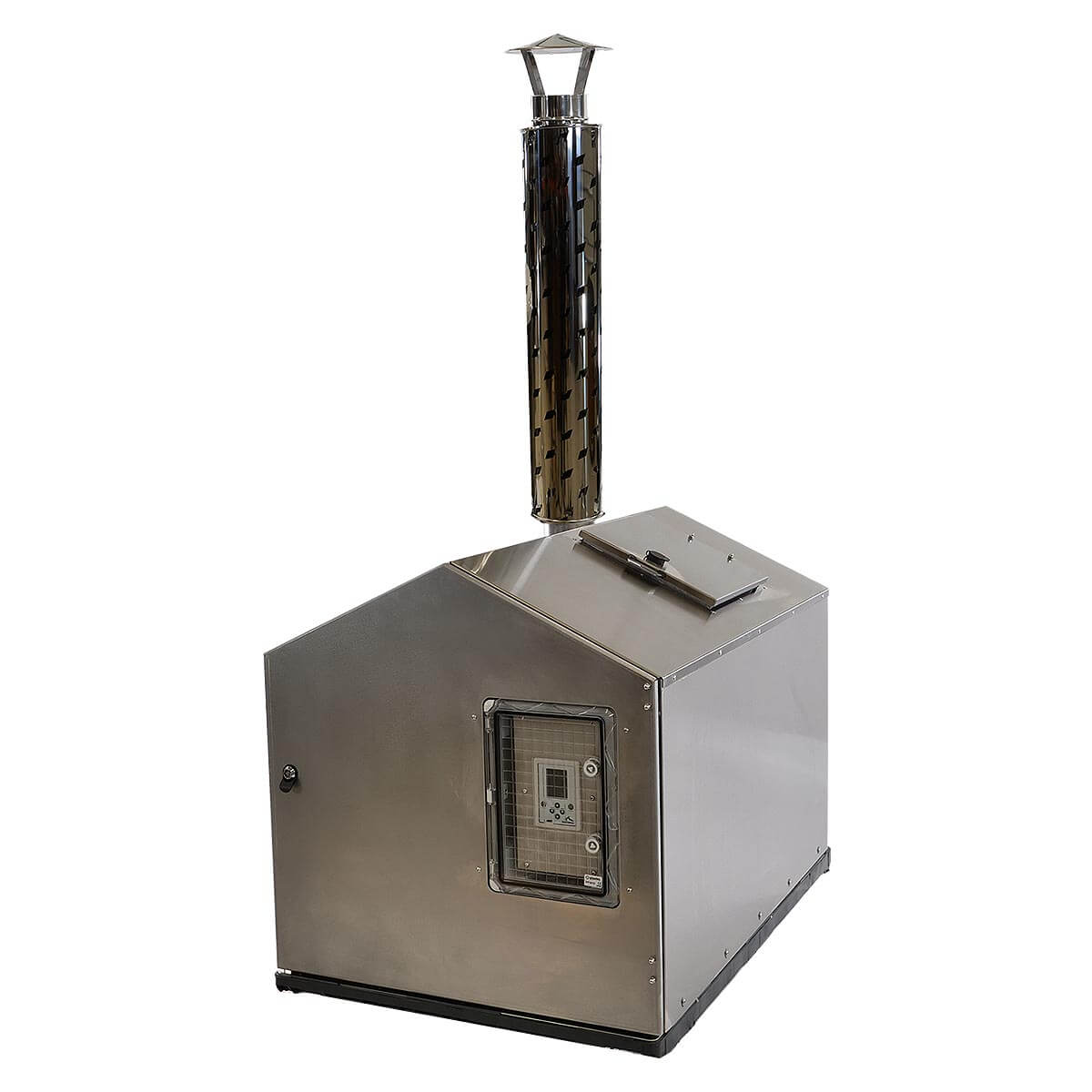

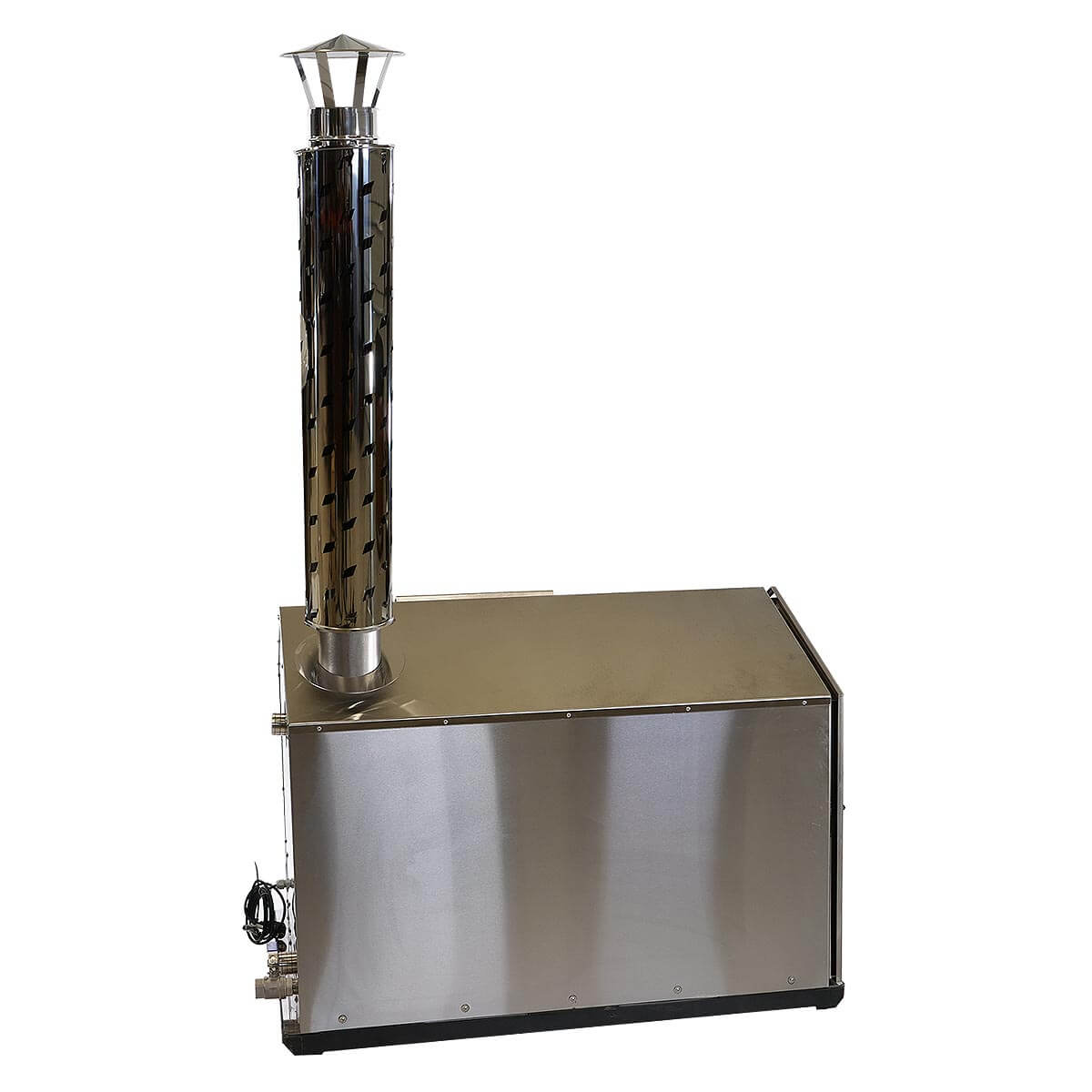

We are proud to present the 25 kW External Smart Wood fired heater. This model harnesses the power of advanced heating technology, allowing you to control the ignition process and monitor water temperature via any mobile device. So you could heat hot tubs water faster than with traditional wood heating stoves and have the same water temperature all the time. TenSpa invented a design that is unique in its ability to continuously feed fuel from a storage container (hopper) into a burn chamber area, producing a constant flame that does not require any physical adjustments (read more ABOUT E/I-SMART WOOD PELLET HEATER).
E-Smart wood pellet heater could be connected of each hot tub, jacuzzi or small pool. High quality heater from stainless steel AISI 316 and 2 mm thickness for durability and resistance to chemicals and salts.
About E/I-smart pellet heater
This is an incredible technology that provides a wonderful TenSpa spa hot tub experience while also incorporating the most advanced smart technology available in the field.
We are proud to present the 25 kW Smart Wood Pellet fired hot tub or external Smart Wood Pellet fired stove. Distinctive wood pellet-burning hot tub with built-in or external stove system to elevate your soaking experience. This model harnesses the power of advanced heating technology, allowing you to control the ignition process and monitor water temperature at the tub’s surface and bottom via any mobile device.
Forget about the troubles of preparing the hot tub ahead of time thanks to our E/I smart pellet heater features. Because the heating chamber can easily store a large amount of pellets, wood pellets can be handled and stored with ease. Following the activation of the heater, the unit will maintain the desired temperature as the pellets are moved to the combustion chamber.
This innovative system simplifies water heating more than ever before. TenSpa invented a design that is unique in its ability to continuously feed fuel from a storage container (hopper) into a burn chamber area, producing a constant flame that does not require any physical adjustments. Within 30 minutes, an external pellet stove can consistently produce 25 kW of power. It means that the water heats up faster.

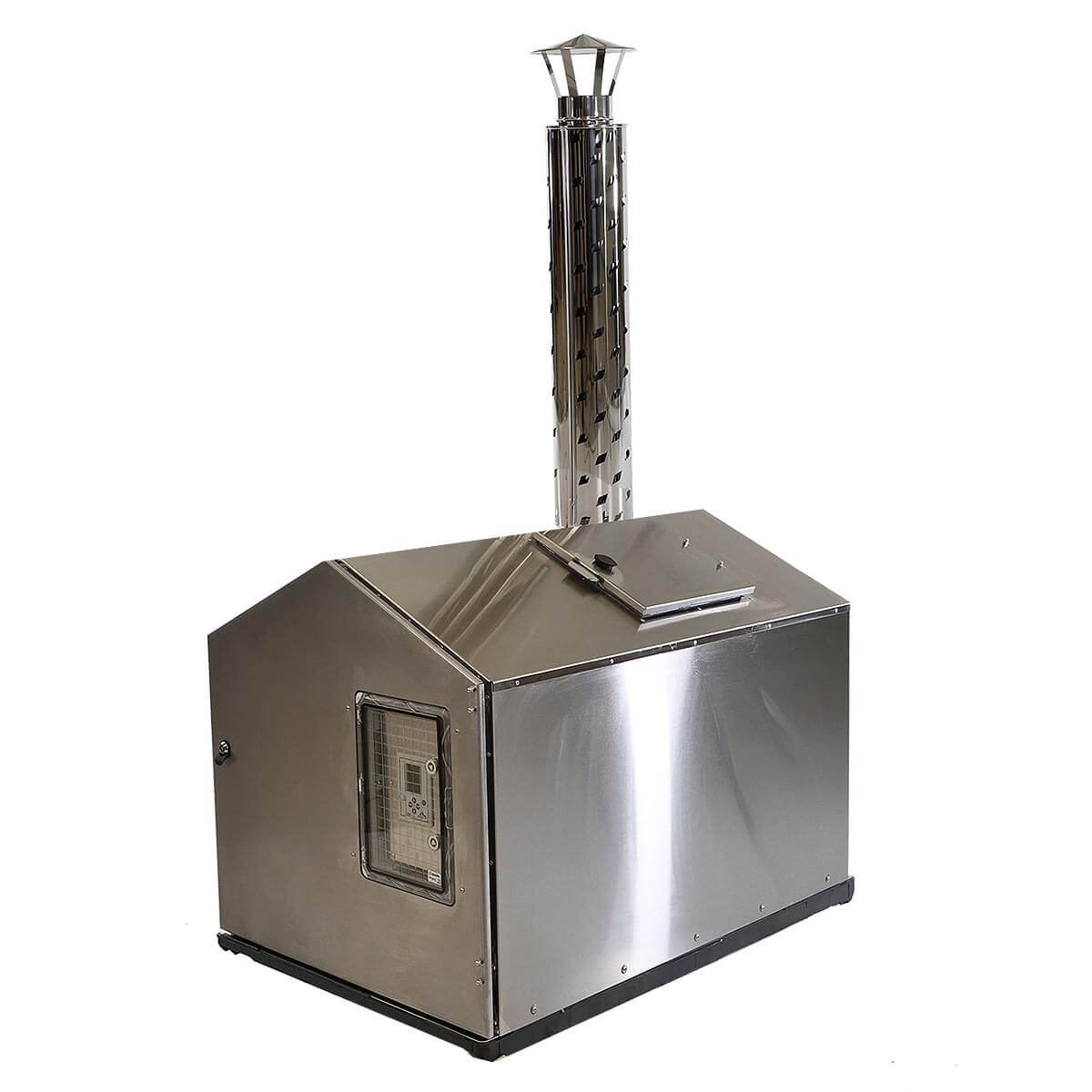

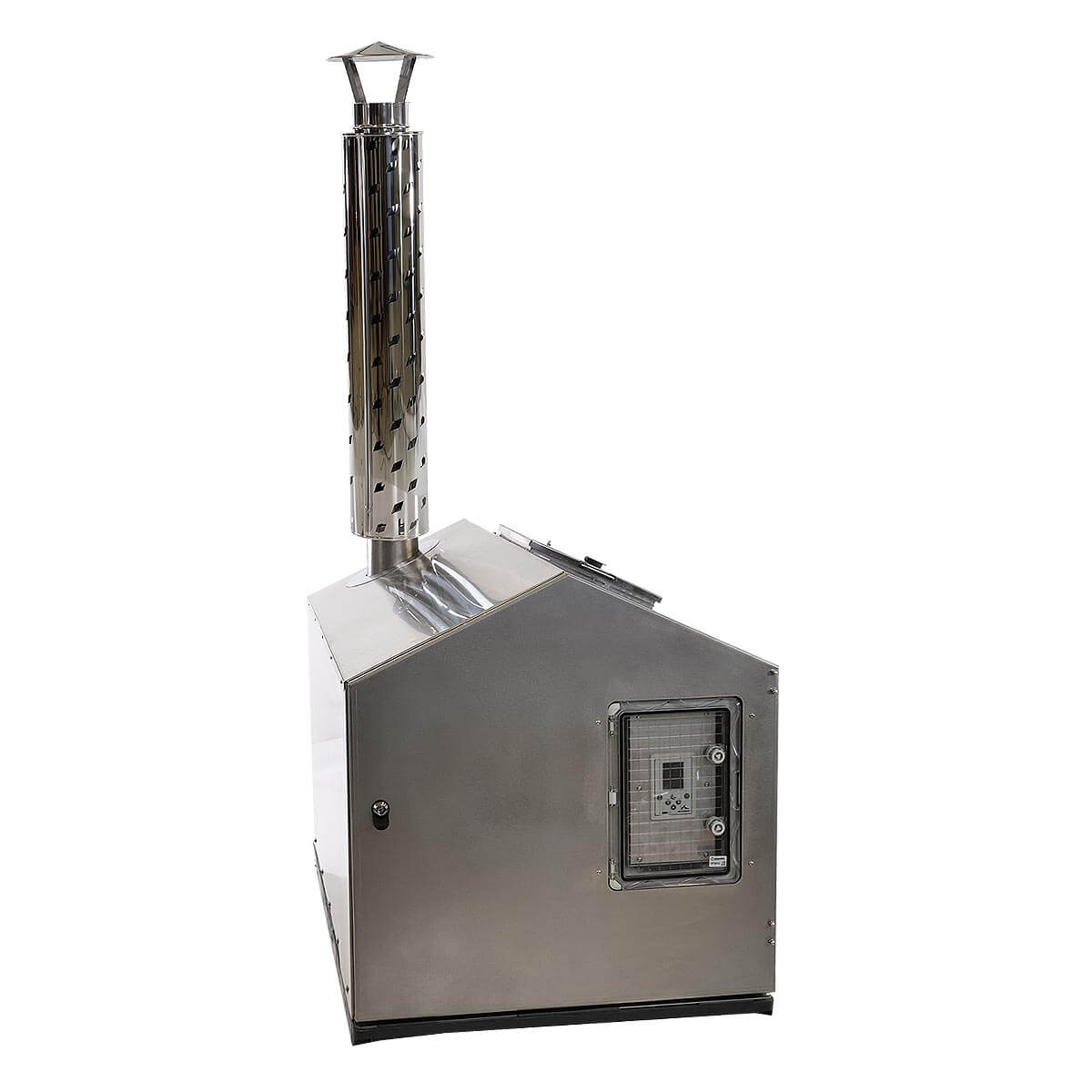

This leads to another point of differentiation: it is now possible to control the heater from a distance using your mobile phone. We made it simple for you to set the desired temperature and monitor it from your device. It’s a seamless, exciting way to enjoy your hot tub experience while also utilizing high-tech features that will save you time and energy. The advantage of a pellet stove over a wood burning stove is that the burning chamber does not need to be recharged every 15-20 minutes. A fully stocked hopper ensures a longer heater period (for about 3 hours). Upon activation of the heater, the ignition process and the wood pellets’ transition into the combustion chamber begins automatically. The owner must ensure that the pellets tank is filled up before starting the heating. Steel heater contains a digital dashboard for manual heating control as well as remote control via mobile app.
Capacity of the storage container in the external SMART Wood Pellet stove – 50 kg of pellets.
Capacity of the storage container in the SMART Wood Pellet hot tub – 25 kg of pellets.

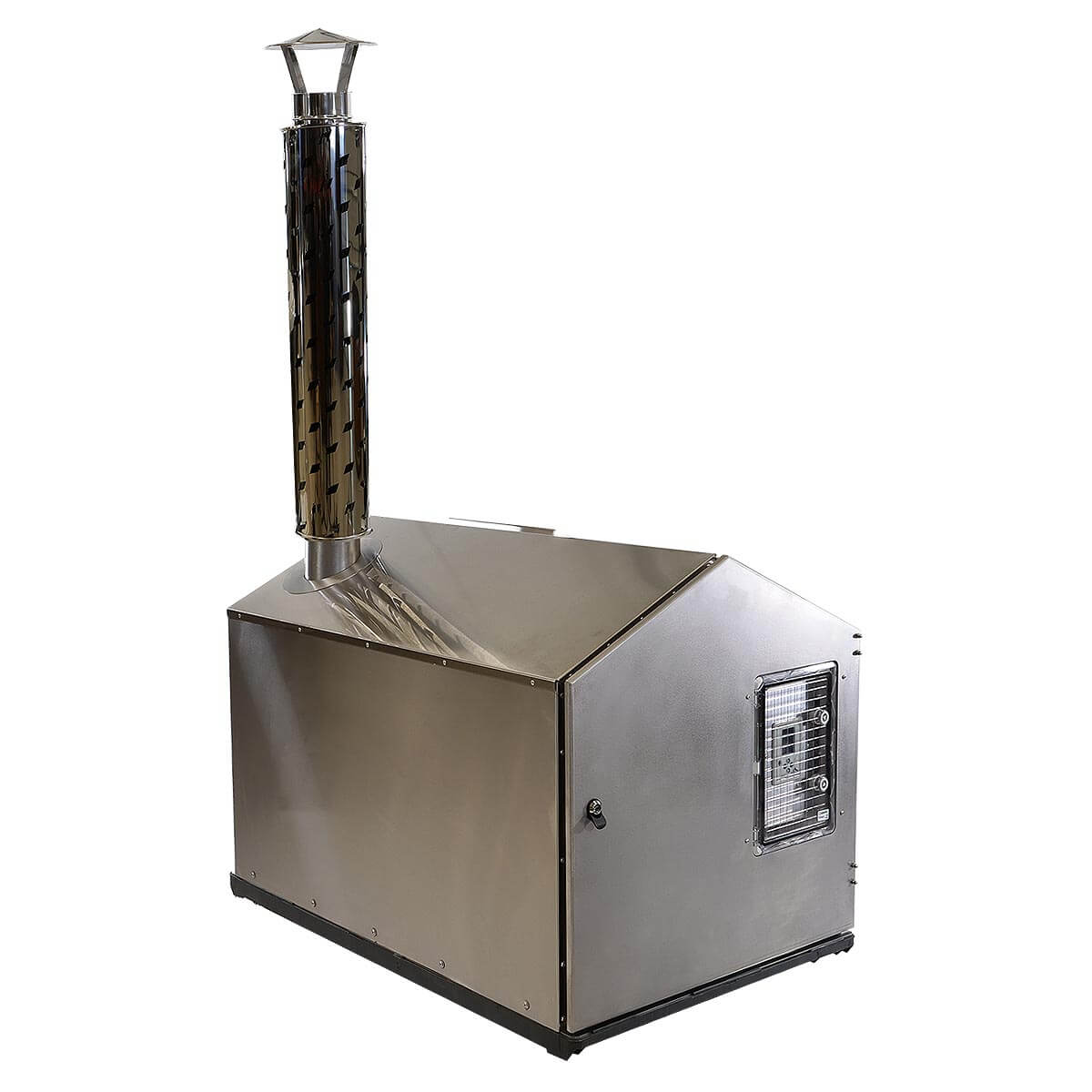

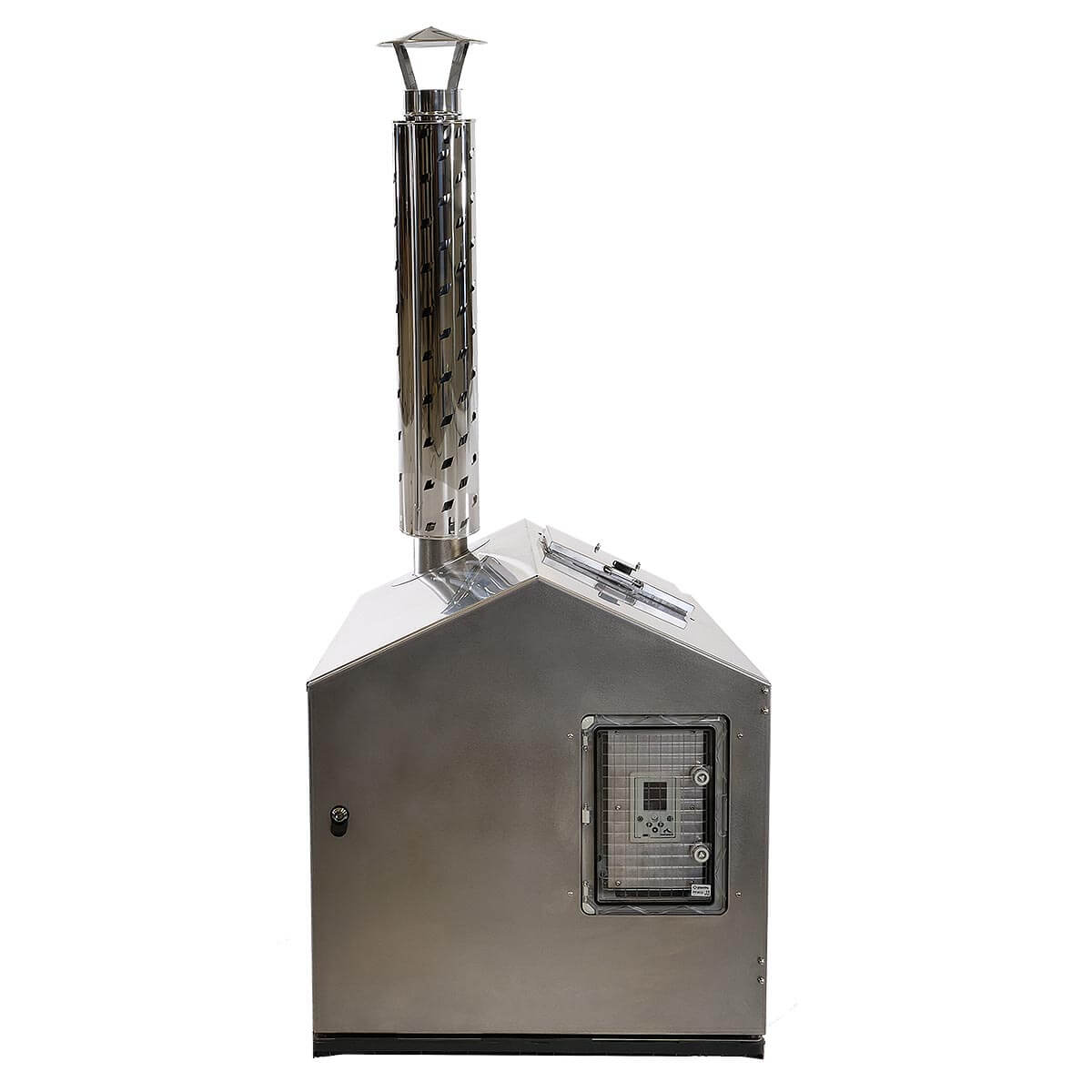

Smart wood pellet fired hot tub in appearance will look almost identical to a standard wood fired hot tub, the only apparent difference is an additional door on the left side of the heater to access the manual control panel and pellets tank. The power of a Smart hot tub hides inside! To fully utilize its capabilities, you will need to download an app for IOS or Android that will allow you to control your hot tub remotely.
Required fuel
6mm wood pellets – A1 standard or Din plus
Pellets are not provided, but we can direct you to trusted suppliers.
The E/I smart pellet heater technology is supported by: Naturela bg
Introduction and installation manual
User manual for pellet heaters Smarttech. by Naturela
Please refer to both introduction and manual to set up the system correctly.
Stainless Steel Quality
Stainless steel is a steel containing at chromium, nickel, chromium, the rest is iron, which gives it exceptional properties:
- Corrosion resistance: Chromium forms a protective oxidation film that protects steel from corrosion;
- High temperature and environmental factors;
- Mechanical strength: despite its light weight, stainless steel is durable, very strong and resistant to mechanical impact;
- Hygienic: Stainless steel is resistant to bacterial growth, making it hygienic and easy to disinfect and clean, making it ideal for ice baths or hot tubs.
There are multiple grades and classes of stainless steel, each with a slightly different composition of alloys. These chemical differences create slightly different physical characteristics.
AISI 316 (V4A / EN 1.4401) or AISI 304 (V2A / EN 1.4301 )
AISI 316 (V4A / EN 1.4401) contains 2-3% molybdenum. Molybdenum makes the material more resistant to corrosion, especially in salt water, acidic, chlorides environments. Stainless steel AISI 316 is higher resistance to high temperatures. If you plan to use salt, chlorides, acidic or you’re planning to place TenSpa products near the sea you should choose AISI316.
AISI 304 (V2A / EN 1.4301 ) is a heat and corrosion resistant steel. Solutions with as little as 25 ppm of sodium chloride can begin to have a corrosive effect. The big advantage of AISI 304 is the lower price. You can choose it if you do not use any seawater, chlorides or acidic environments.
Stainless steel has the innate ability to form a passive layer that prevents corrosion. The secret?
Chromium.
The chromium found in all stainless steels reacts quickly with oxygen environments, much the same as iron. The difference is that only a very fine layer of chromium will oxidize (often only a few molecules in thickness). Unlike flaky and unstable iron oxide, chromium oxide is highly durable and non-reactive. It adheres to stainless steel surfaces and won’t transfer or react further with other materials. It is also self-renewing—if it’s removed or damaged, more chromium will react with oxygen to replenish the barrier. The higher the chromium content, the faster the barrier repairs itself.
Once oxidized, or passivized, stainless steel typically rusts at a very low rate of less than 0.002 inches per year.
However, please be aware that stainless steel may be susceptible to rust. But please note these rusts you could clean very easy
Long life of stove by following water quality limit values below
- Chlorine content: max 3.5 mg/l (ppm)*
- pH value: 7.2–7.6
- Alkalinity: 60–120 mg/l (ppm)
- Calcium hardness: 100–300 mg/l (ppm)
- Iron: max 0,1 mg/l (ppm)*
- Copper: max 0,2 mg/l (ppm)*
- Manganese: max 0,05 mg/l (ppm)*
- Phosphorus: max 0,01 mg/l (ppm)*
- Nitrate: max 50 mg/l (ppm)*
- Chloride (salt) content: max 250 mg/l (ppm)
- Chloride (salt) content: max 35 000 mg/l (ppm) – titanium for salt water
Stoves basic conditions for use
- The stoves are specially designed for the hot tubs or small pools
- Maximum acceptable water temperature in the hot tub is 45 degrees
- It is not allowed to close the input and output pipes of the stove during the burning and until the stove is cooled down
- It is not allowed to create extra pressure in the stove
- It is not allowed to let the water freeze in the stove
- It is not allowed to let the water freeze in the hot tub
- It is not allowed to use the stove without water inside the hot tubCorrect and incorrect connection of the external stove-The external heater and outdoor hot tub must be placed on a flat, solid surface.It is important that the connection hose at the top connects slightly (with a little angle).
-The lower stove connection hose can be connected evenly.
CAUTION! Never burn the stove without the required amount of water in the hot tub. Otherwise, you may burn the stove and hot tub.
